Description

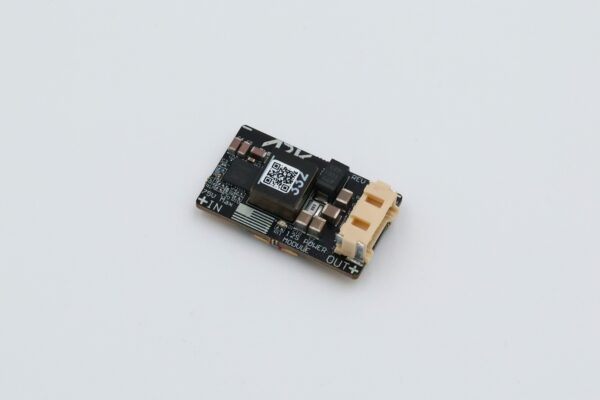

The ARK 12S PAB Power Module is a 5V 6A power supply and digital power monitor designed for the Pixhawk Autopilot Bus Carrier boards.

• TI INA238 Digital Power Monitor
  • 0.0001 Ohm Shunt
  • I2C Interface
• 5.2V 6A Step-Down Regulator
  • 66V Maximum Input Voltage
  • 10V Minimum Input Voltage at 6A Out
  • Output Over-Current Protection

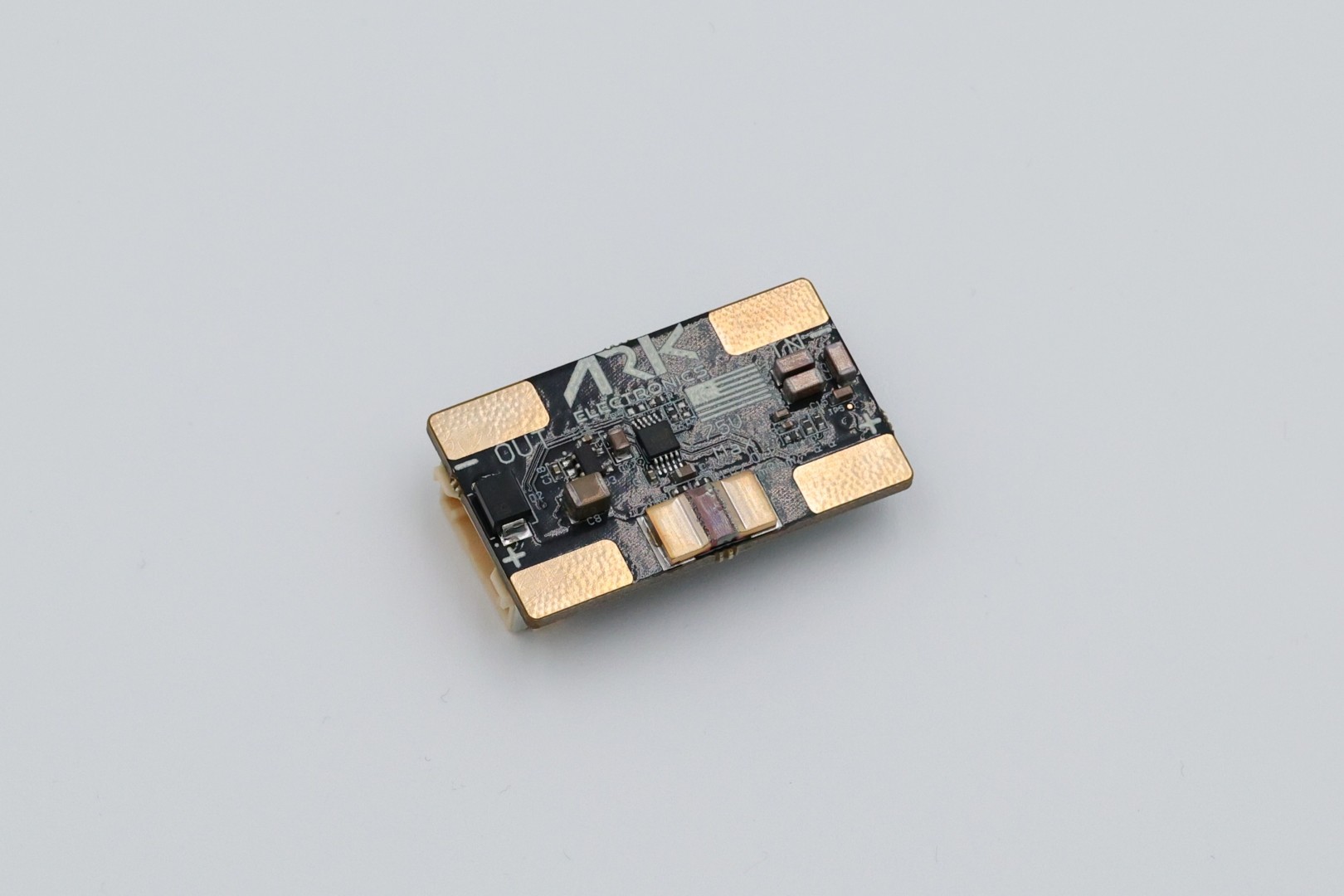

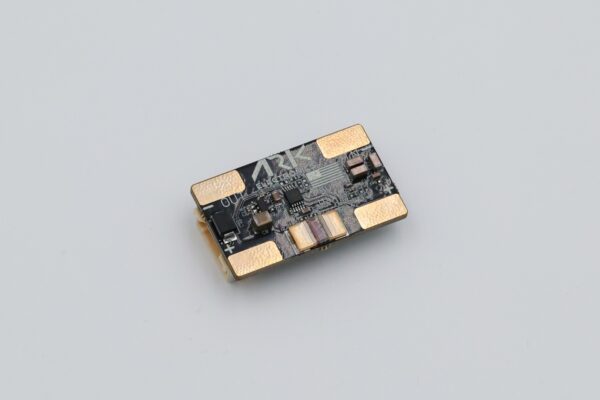

• Solder Pads Battery Input
• Solder Pads Battery Output
• 6 Pin Molex CLIK-Mate Output
  • Matches ARK PAB Carrier Power Pinout
• Dimensions
  • 3.7cm x 2.2cm x 1.3cm
• Weight
  • 15.5g
• USA Built

Includes 6 Pin Molex CLIK-Mate Cable
