Description

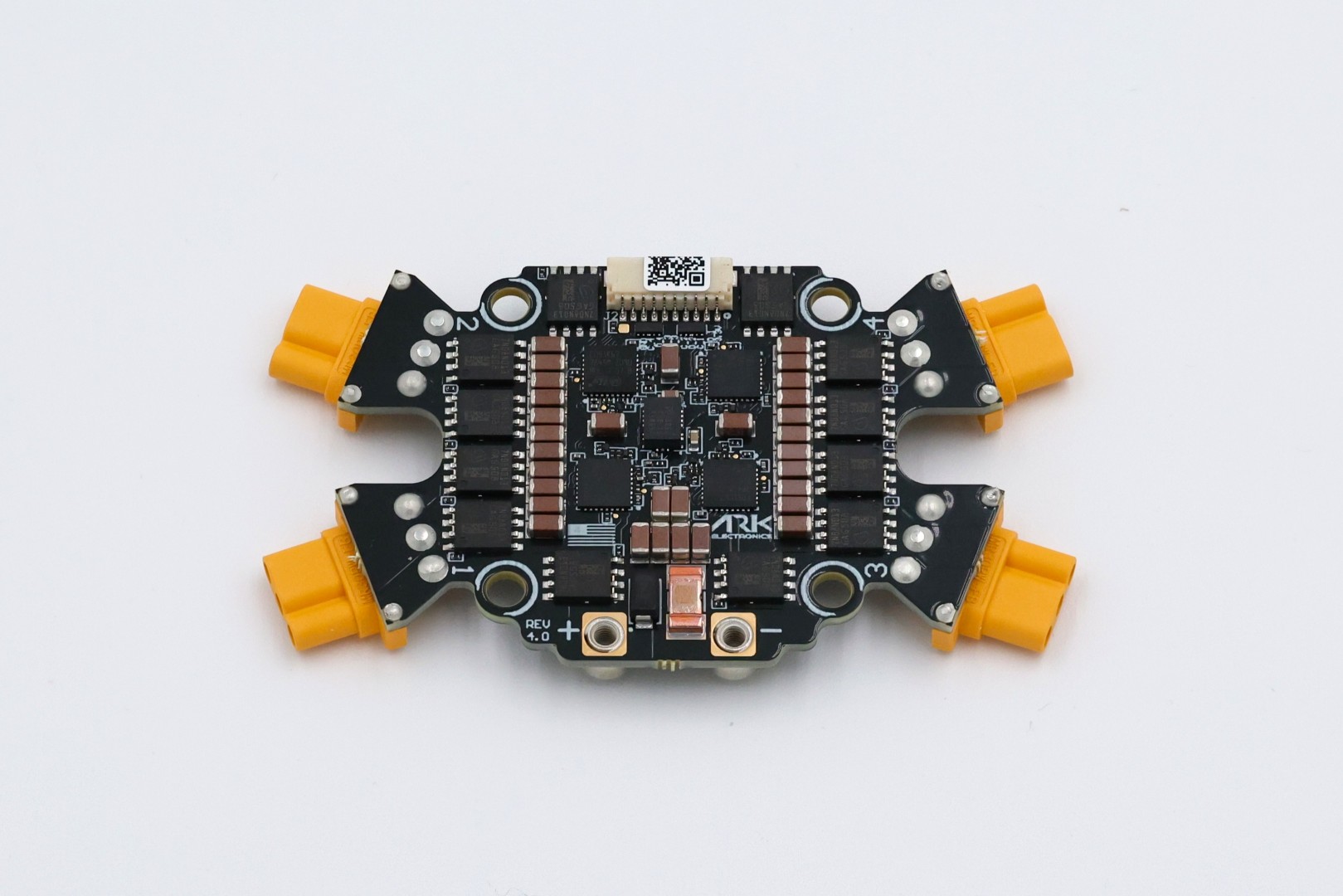

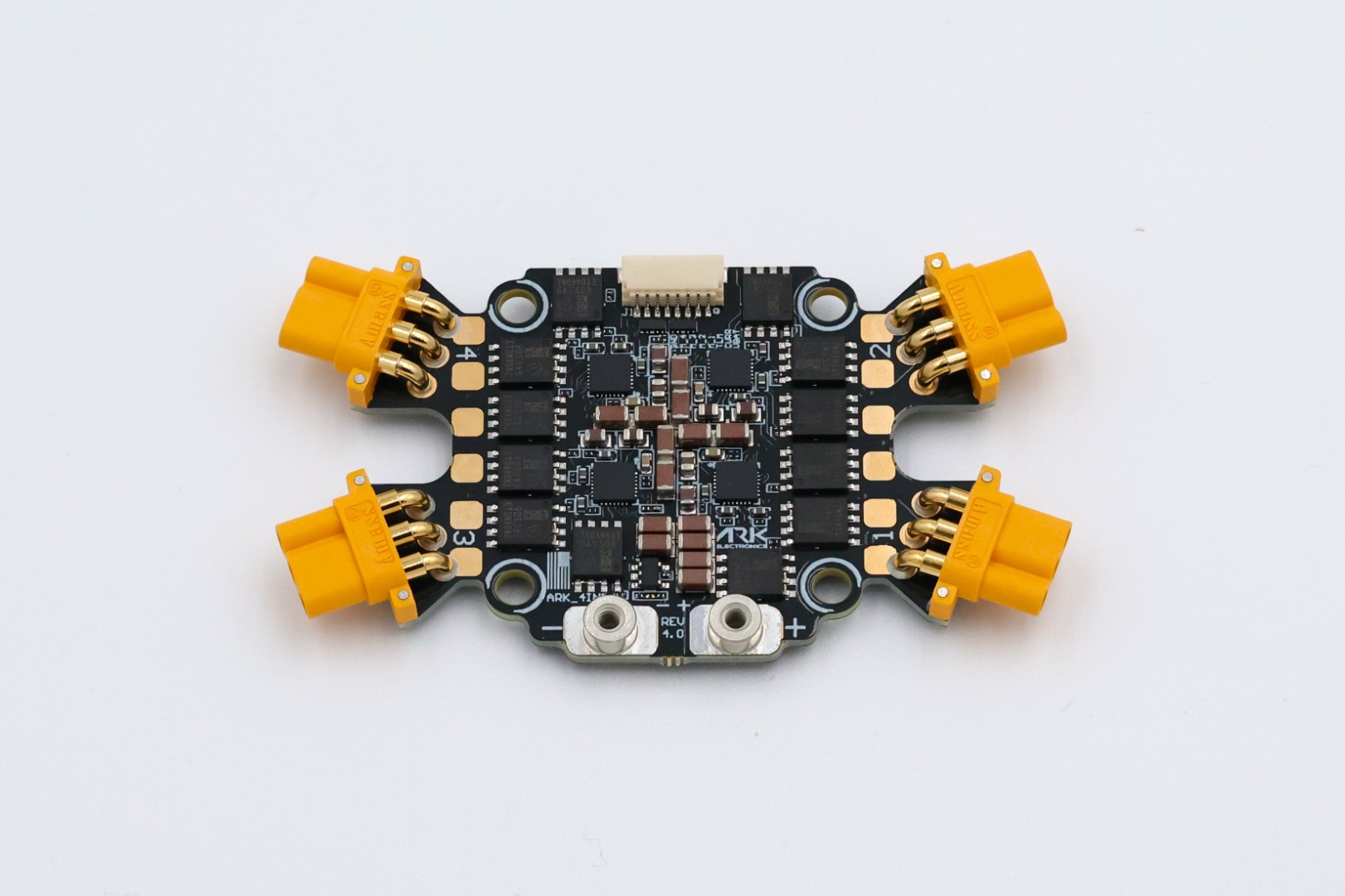

NDAA compliant, made in the USA, DIU Blue Framework listed, 4 in 1 electronic speed controller. Ships with open source ARK32 firmware. Configure with the ARK32 Configurator. Can be flashed with stock AM32. No soldering required with built in motor and battery connectors.

• 3s – 8s Battery Input
  • 6V Minimum
  • 65V Absolute Maximum
• Current Limit
  • MR30 Connector Limit Per Motor – 30A Continuous, 40A Burst
  • Board Limit Per Motor – 50A Continuous, 75A Burst
• STM32F0
• Firmware
  • Ships with ARK32 firmware
  • ARK32 Configurator
  • Can be flashed with stock AM32
• Onboard Current Sensor
  • 100V/A
• Input Protocols
  • Dshot (300, 600)
    • Bi-directional Dshot
    • KISS Serial Telemetry
  • PWM
• 8 Pin JST-SH Input/Output
• 10 Pin JST-SH Debug
• M2.5 Battery Input Threaded Standoffs
  • Two 150mm 10AWG Power Cables Terminated with M2.5 Ring Terminals Included
• Dimensions
  • 77.00mm x 42.00mm x 9.43mm
  • 30.5mm Mounting Pattern
• Weight
  • 24.0g
• Made in the USA
  • NDAA Compliant
  • DIU Blue Framework Listed
• 3D Model
