Description

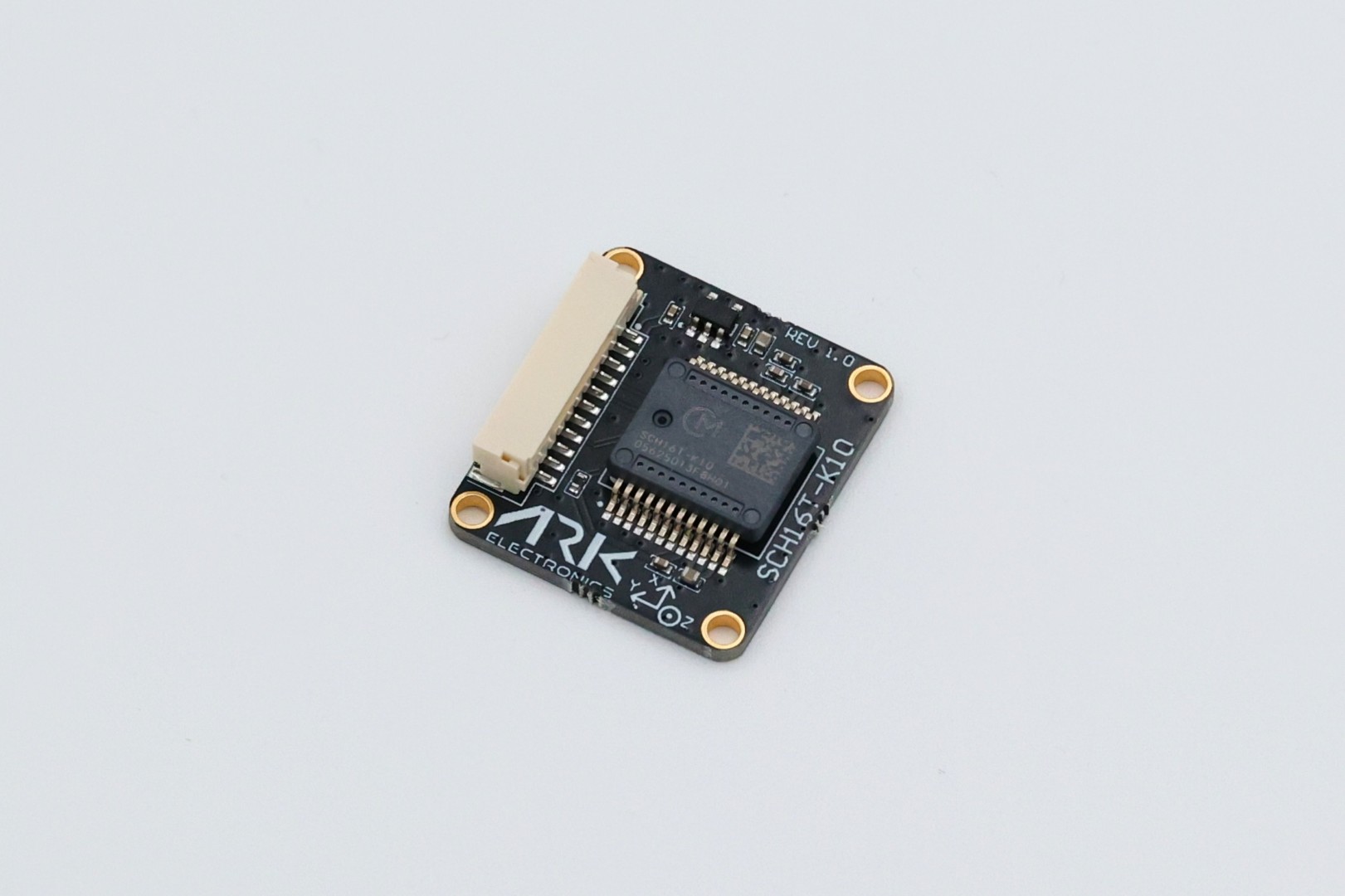

• Murata SCH16T-K10 Series Combined Gyro Sensor and Accelerometer
  • ±2000°/s angular rate measurement range
  • ±16g acceleration measurement range
  • Redundant digital accelerometer channel with up to ±26g dynamic range
  • Gyro bias instability down to 2°/h, noise density level down to 6m°/s/√Hz
  • −40 … 110°C operating temperature range
• 11 Pin JST GH
  • Matches ARK PAB and Jetson Carrier SPI Pinout
    • nCS2 and DRDY2 are not connected
• Compatible with
  • PX4
  • ArduPilot
• Dimensions
  • 2.5cm x 2.25cm x 0.59cm
• Weight
  • 2.5g

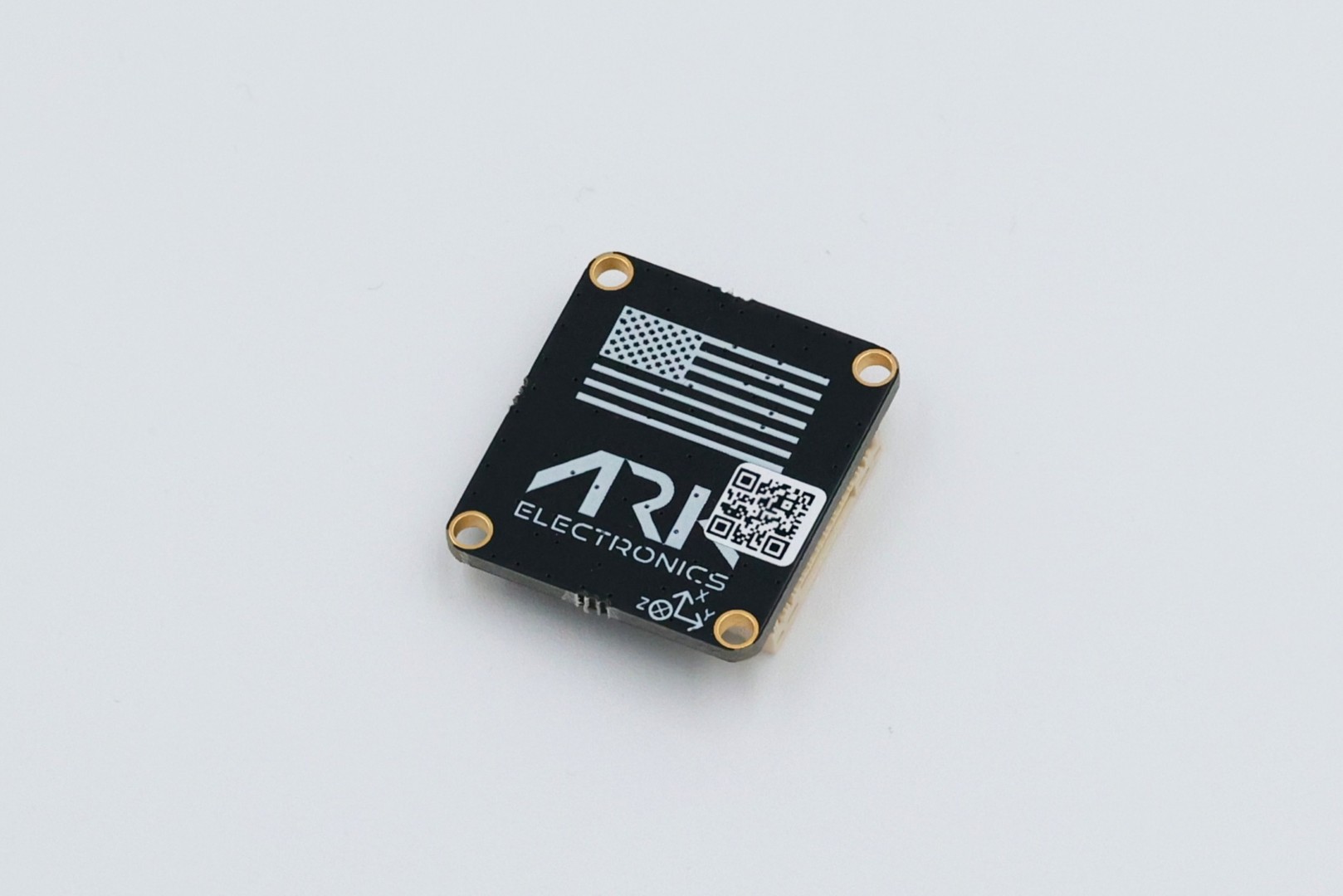

• USA Built
• NDAA Compliant
• Power Requirements
  • 5V
    • 46mA average

Includes 11 Pin JST-GH Cable

Documentation

3D Model

Datasheet
