ARK 12S Payload Power Module

$195.00

Dual 5V 6A and 12V 6A power supply and digital power monitor designed for the Pixhawk Autopilot Bus Carrier boards supporting 12S batteries

On Backorder

SKU: ARK-12S-PAYLOAD-POWER Categories: , Tags: , , ,

Description

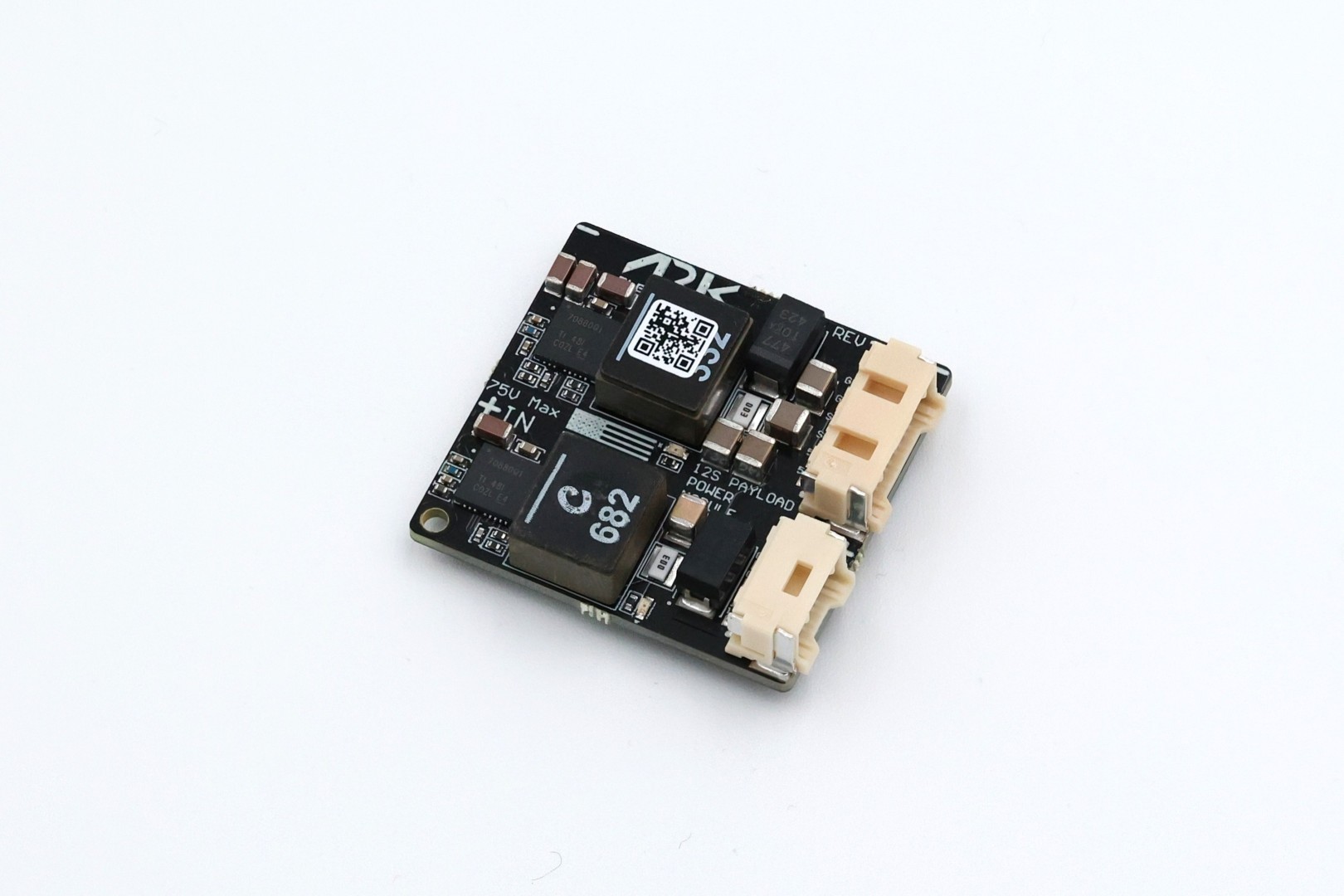

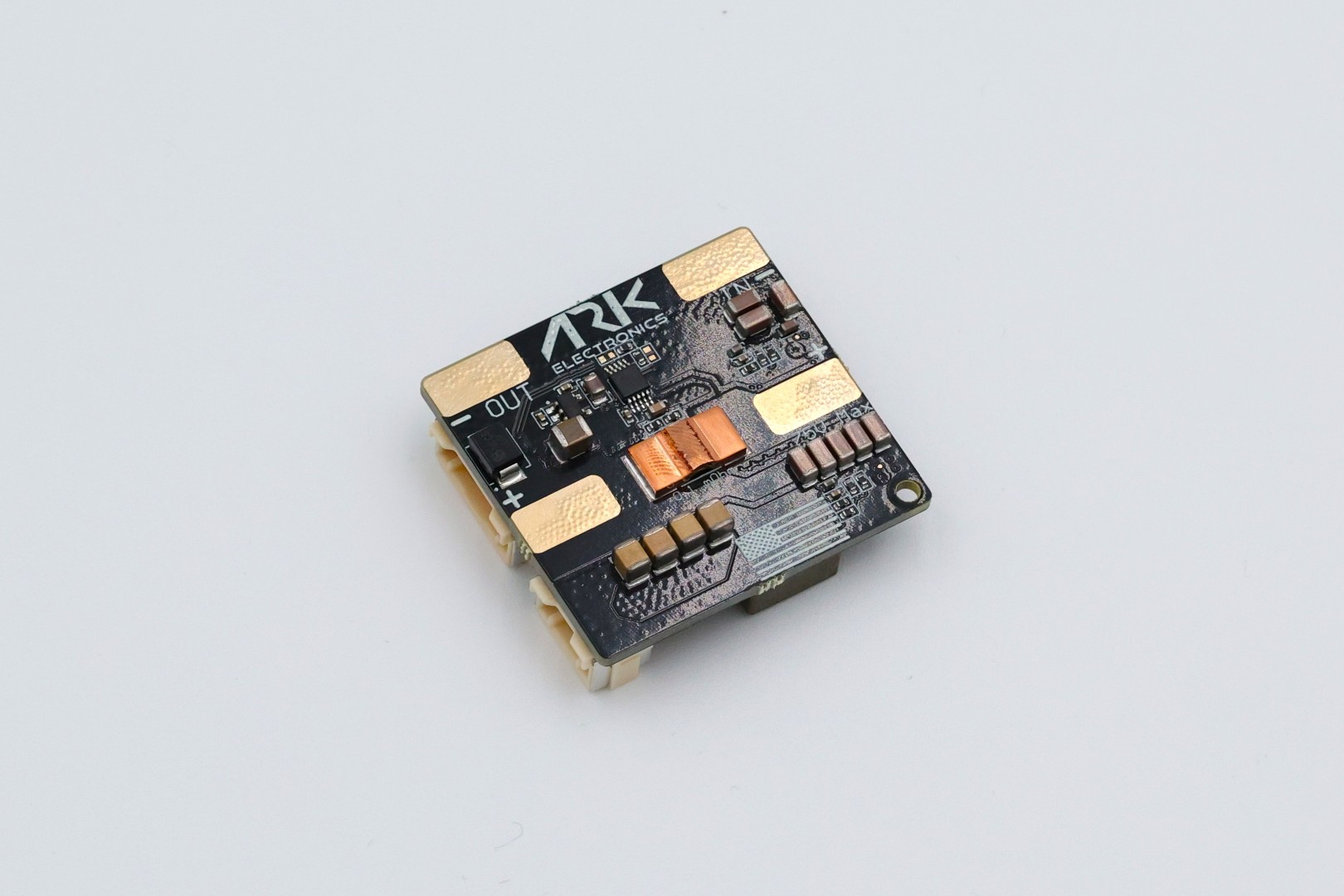

The ARK 12S Payload Power Module is a dual 5V 6A and 12V 6A power supply and digital power monitor designed for the Pixhawk Autopilot Bus Carrier boards.

  • TI INA238 Digital Power Monitor
    • 0.0001 Ohm Shunt
    • I2C Interface
  • 5.2V 6A Step-Down Regulator
    • 10V Minimum Input Voltage at 6A Out
    • Output Over-Current Protection
  • 12.0V 6A Step-Down Regulator
    • 15V Minimum Input Voltage at 6A Out
    • Output Over-Current Protection
  • 75V Maximum Input Voltage
  • Solder Pads Battery Input
  • Solder Pads Battery Output
  • 6 Pin Molex CLIK-Mate 5V Output
  • 4 Pin Molex CLIK-Mate 12V Output
  • Dimensions
    • 3.7cm x 3.5cm x 1.3cm
  • Weight
    • 20.5g
  • USA Built
  • NDAA Compliant

Includes 6 Pin and 4 Pin Molex CLIK-Mate Cables

3D Model

Documentation

Additional information

Weight 20.5 g
Dimensions 3.5 × 3.7 × 1.3 cm
