Description

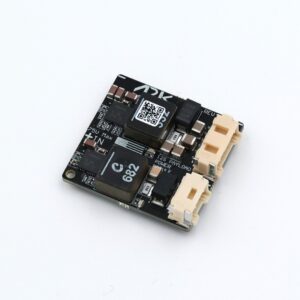

The ARK PAB Power Module is a 5V 6A power supply and digital power monitor designed for the Pixhawk Autopilot Bus Carrier boards.

• TI INA226 Digital Power Monitor
  • 500μOhm Shunt
  • I2C Interface
• 5.2V 6A Step-Down Regulator
  • 33V Maximum Input Voltage
  • 5.8V Minimum Input Voltage at 6A Out
  • Output Over-Voltage Protection
  • Output Over-Current Protection
• Solder Pad Battery Input
• Solder Pad Battery Output
• 6 Pin Molex CLIK-Mate Output

  • Matches ARK PAB Carrier Power Pinout
• Dimensions

  • 4.75cm x 3.43cm x 0.86cm
• Weight
  • 9.5g
• USA Built
• FCC Compliant

Includes 6 Pin Molex CLIK-Mate Cable

3D Model
