Description

Dual 8 PWM Output Connectors

• 10 Pin JST-GH

Small Form Factor

• 1.875cm x 1.65cm x 0.675cm
• 2g

USA Built

NDAA Compliant

Includes one 4 Pin JST-GH cable.

Optionally add the ARK Servo Adapter that includes a 10 pin JST-GH cable and 3 pin servo header breakout.

Documentation

3D Model

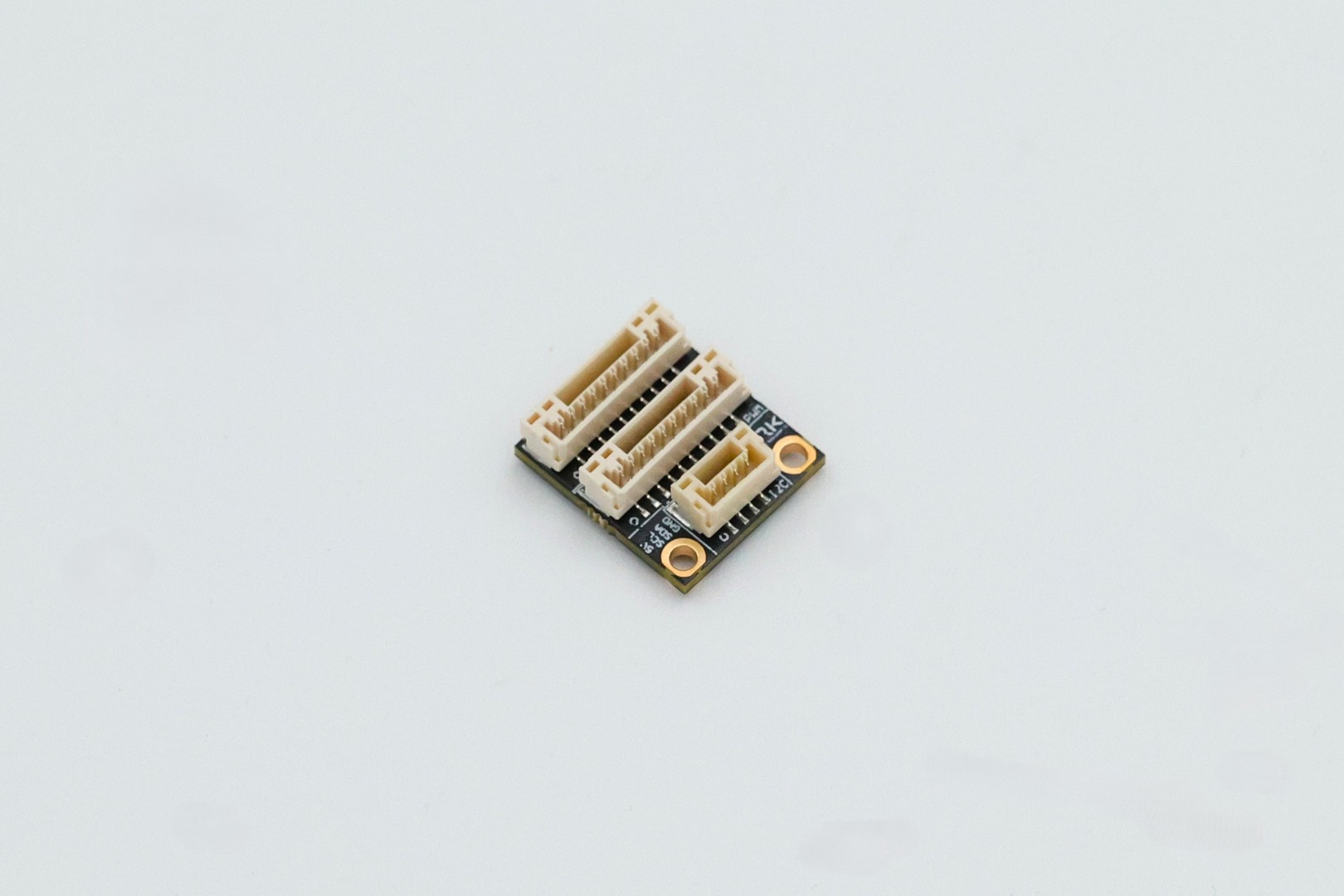

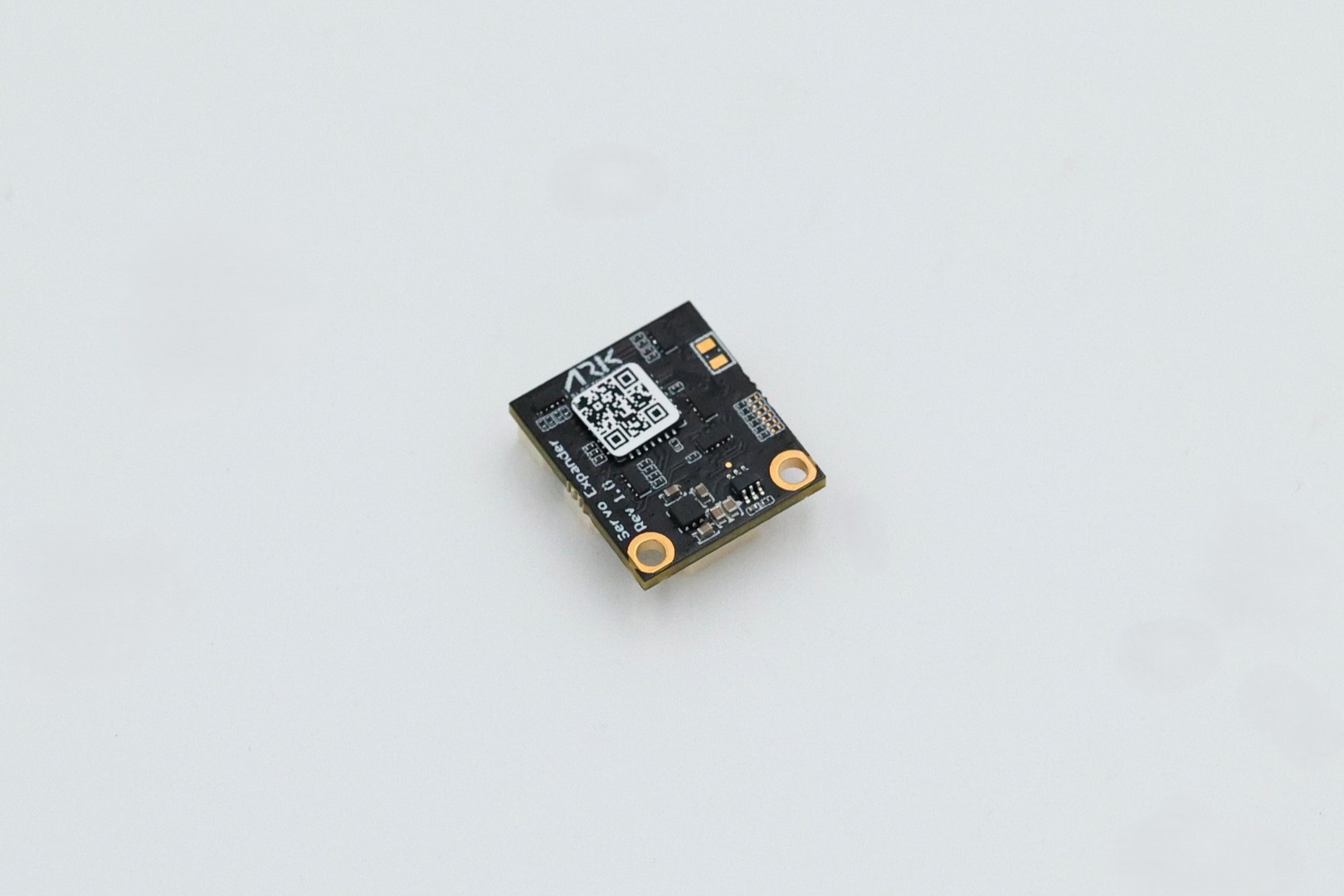

A simple I2C to 16 channel servo/PWM expander. Compatible with flight controllers running PX4.

•  PCA9685
  • 16-channel, 12-bit PWM I2C Controller
• Pixhawk Standard I2C Connector
  • 4 Pin JST-GH
• Dual 8 PWM Output Connectors
  • 10 Pin JST-GH
• Small Form Factor
  • 1.875cm x 1.65cm x 0.675cm
  • 2g
• USA Built
• NDAA Compliant

Includes one 4 Pin JST-GH cable.

Optionally add the ARK Servo Adapter that includes a 10 pin JST-GH cable and 3 pin servo header breakout.

Documentation

3D Model

A simple I2C to 16 channel servo/PWM expander. Compatible with flight controllers running PX4.
