Description

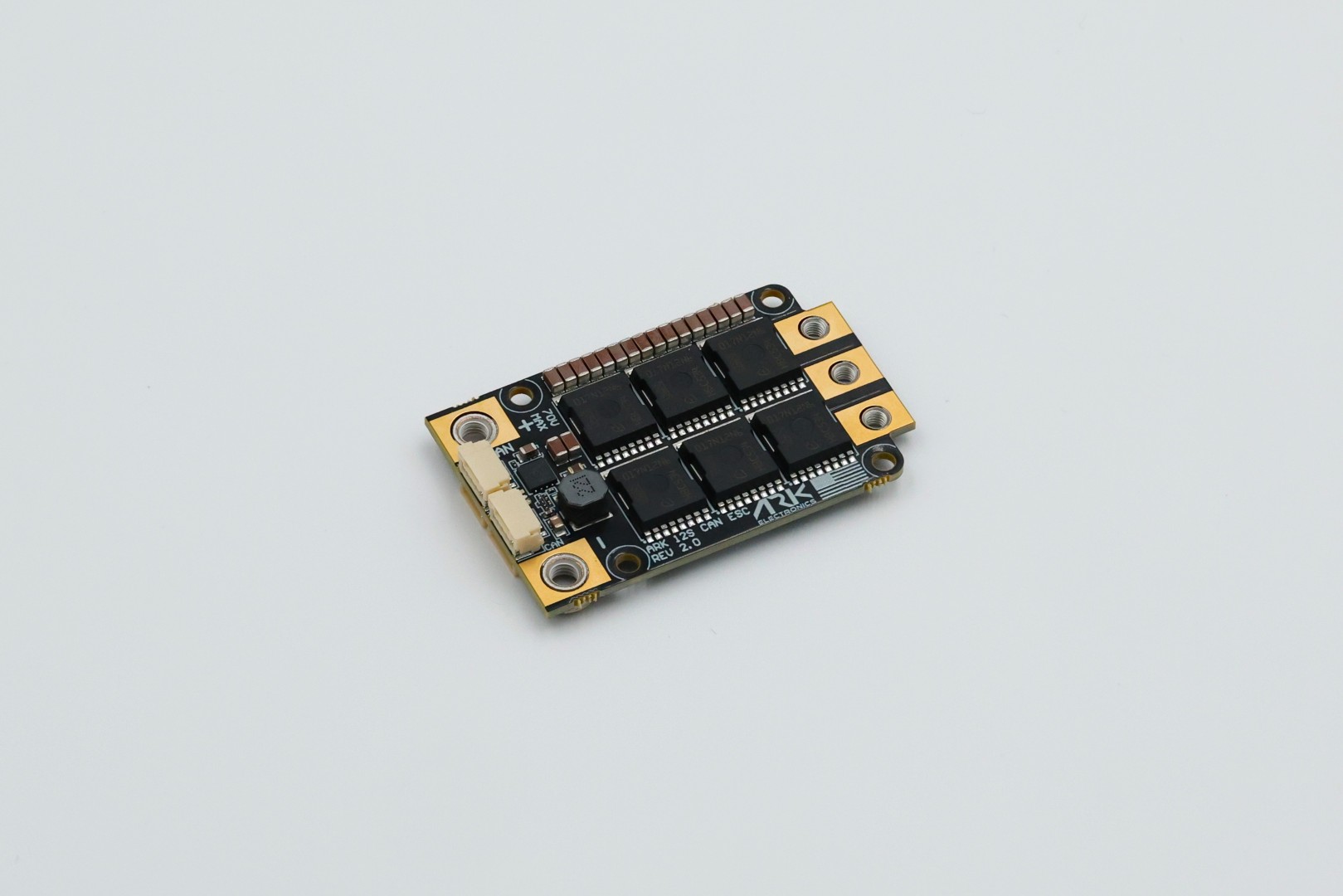

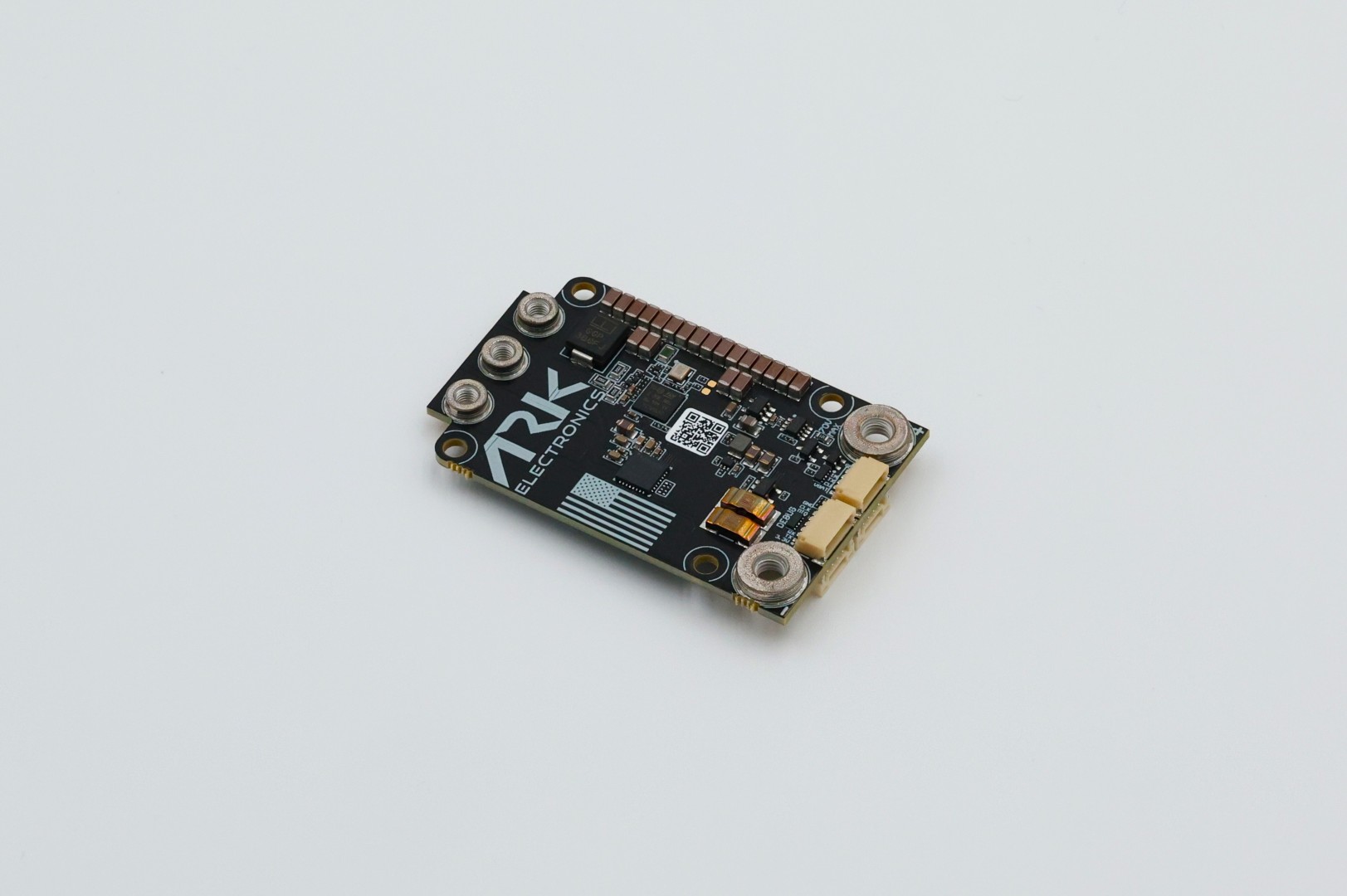

Made in the USA, NDAA compliant, single motor 12S CAN ESC. Supports CAN FD and accepts a conventional single wire signal input, so it can be used over CAN or as a drop in replacement for a PWM/DShot ESC. Threaded surface mount standoffs can be used to make the motor and power connections, or traditional soldering can be used on the opposite side pads.
- 4S – 12S Battery Input
- 9V Minimum
- 70V Absolute Maximum
- Current
- Continuous: TBD
- Burst: TBD
- 0 – 300A measurement range, 10mV/A
- Motor Outputs
- 1 motor, 3 phases
- 6 × 120V 1.7mΩ MOSFETs
- Interfaces
- CAN FD, up to 5Mbps, software switchable termination
- Single wire signal input, 5V tolerant
- Single wire serial telemetry output
- Analog current output, 10mV/A
- SWD and debug console
- Firmware
- ARK32 with DroneCAN interface
- Connectors
- Dual 4 Pin JST-GH CAN
- 5 Pin JST-SH Flight Controller
- 6 Pin JST-SH SWD and Console
- Dimensions
- 57.75mm x 36.20mm x 9.04mm
- 31.20mm x 37.75mm mounting pattern
- Weight
- 22g
- Made in the USA
- NDAA Compliant
- 3D Model
