Description

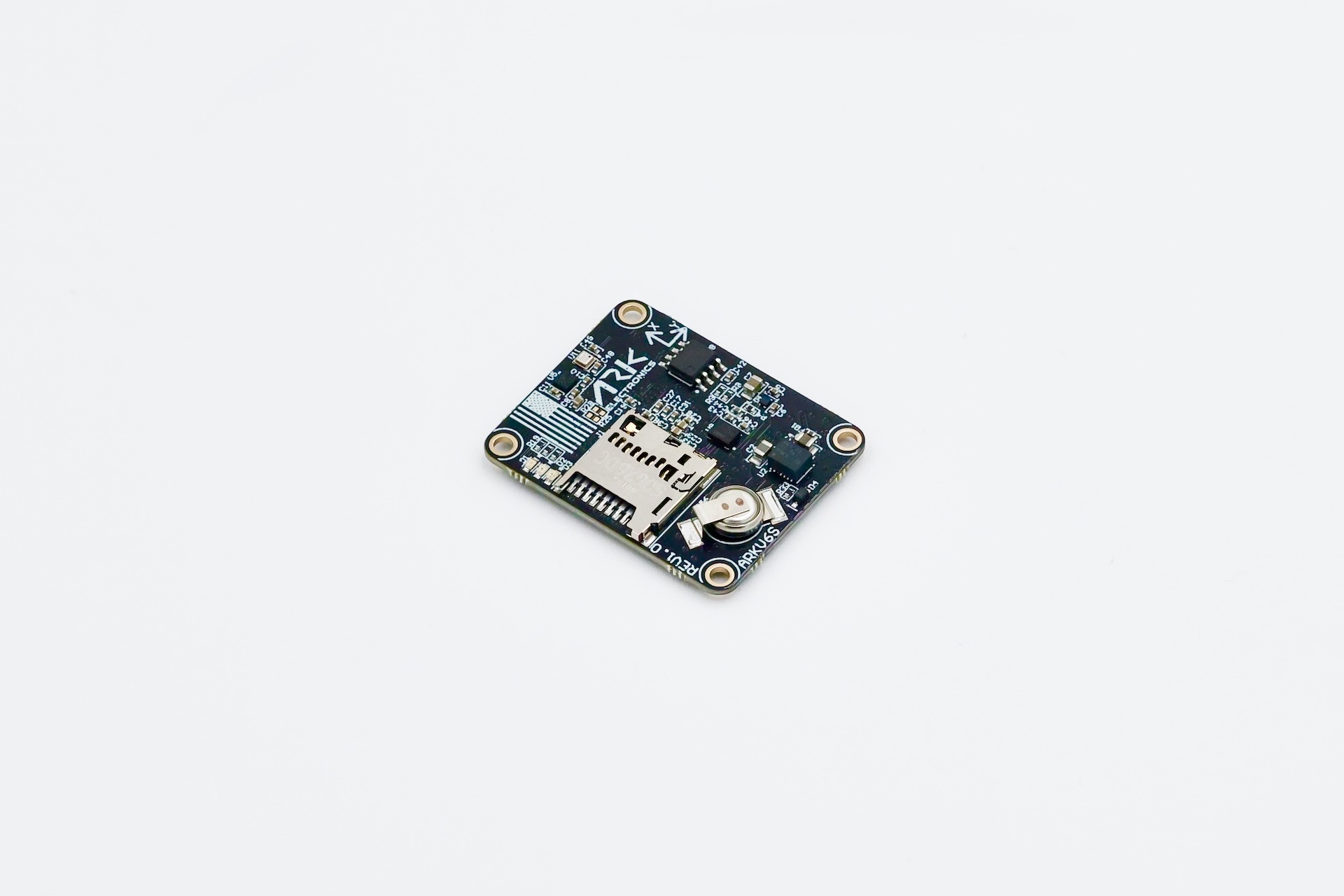

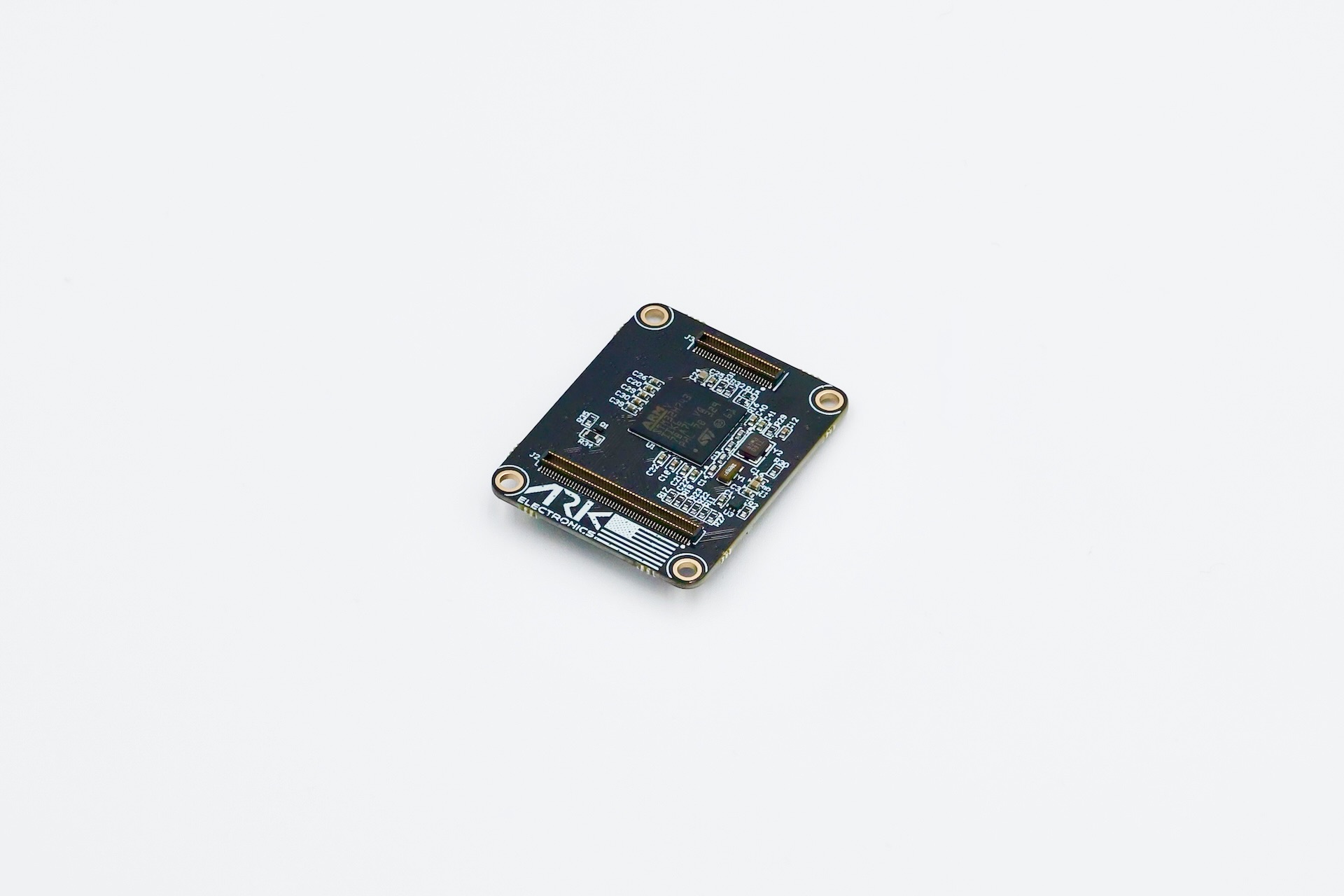

The ARKV6S NDAA compliant flight controller is based on the FMUV6X and Pixhawk Autopilot Bus open source specifications. The Pixhawk Autopilot Bus (PAB) form factor enables the ARKV6S to be used on any PAB carrier board.

• Supported Firmware
  • PX4 Autopilot – Ships By Default
  • Ardupilot – Can Be Flashed
• Sensors
  • Invensense IIM-42653 Industrial IMU
  • Bosch BMP390 Barometer
  • ST IIS2MDC Magnetometer
• STM32H743IIK6 MCU
  • 480MHz
  • 2MB Flash
  • 1MB RAM
• FRAM
• Pixhawk Autopilot Bus (PAB) Form Factor
• Heater
  • 1W for warming sensors in extreme cold
• LED Indicators
• MicroSD Slot
• USA Built
  • NDAA compliant
  • FCC compliant
• Power Requirements
  • 5V
    • 500mA
      • 300mA for main system
      • 200mA for heater

Includes MicroSD card

3D Model

*Requires a Pixhawk Autopilot Bus compliant carrier such as the ARK Pixhawk Autopilot Bus Carrier
