Description

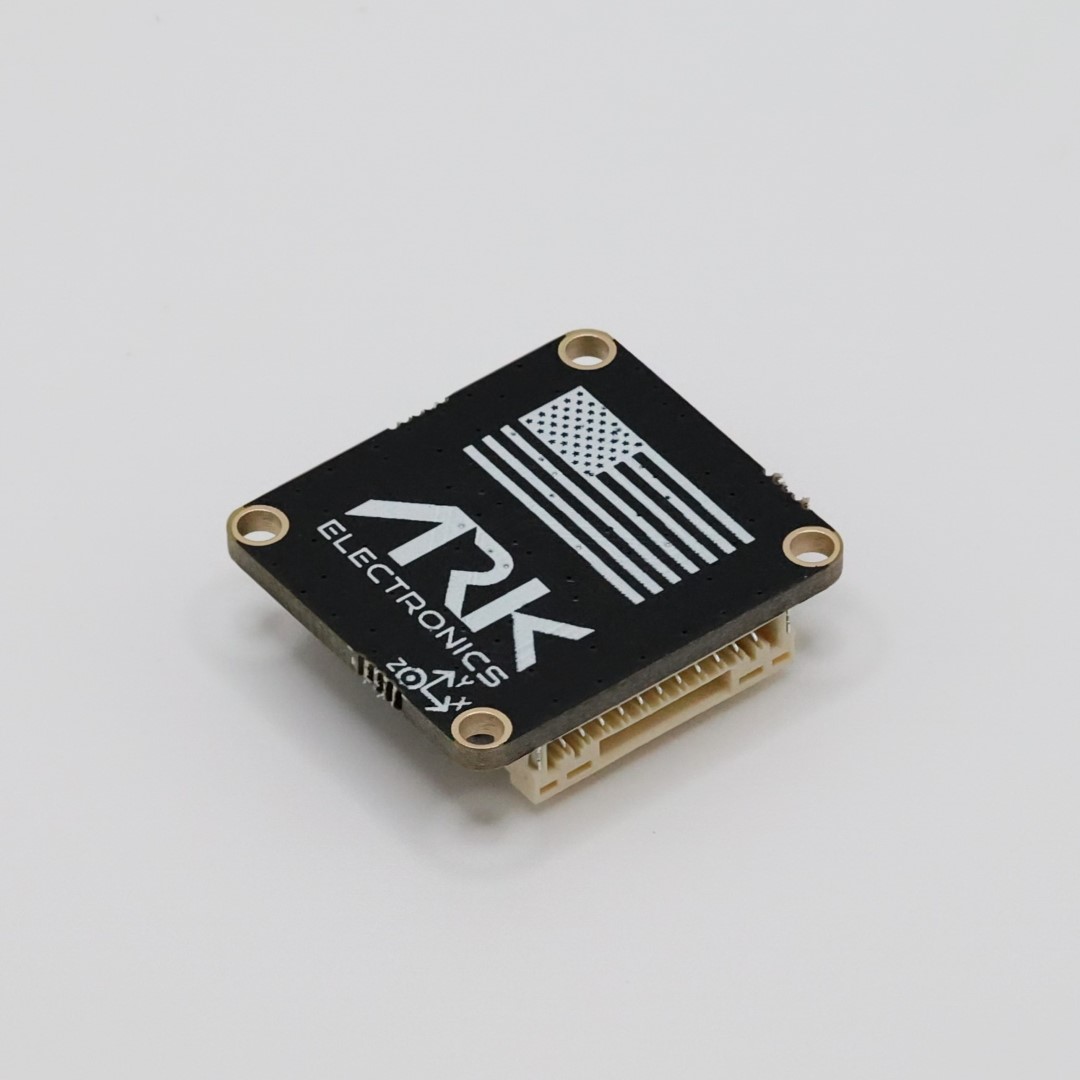

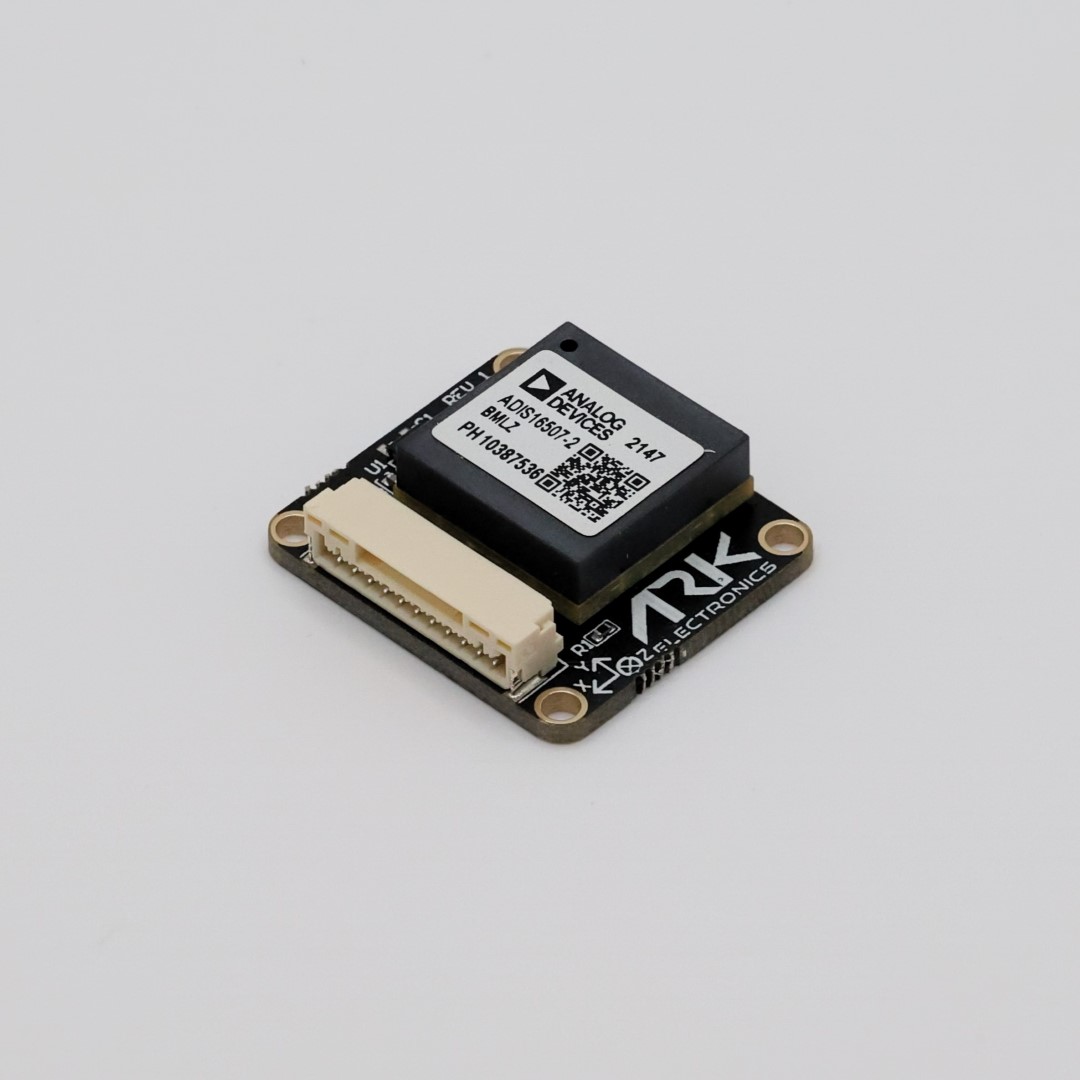

• Analog Devices ADIS16507-2 6-Axis Precision MEMS IMU
  • ±500 °/sec Gyroscope
    • In-Run Bias Stability
      • 2.7 °/hr (1 σ, datasheet typical)
  • ±392 m/sec² Accelerometer
    • In-Run Bias Stability
      • X and Y axes 125 μm/sec²
      • Z axis 134 μm/sec²
  • Factory calibrated sensitivity, bias, and axial alignment
    • Calibration temperature range: −40°C to +85°C
• 11 Pin JST GH
  • Matches ARK PAB Carrier SPI Pinout
    • nCS2 and DRDY2 are not connected
• Compatible with
  • PX4
  • ArduPilot
• Dimensions
  • 2.5cm x 2.25cm x 0.71cm
• Weight
  • 4g
• USA Built
• Power Requirements
  • 5V
    • 41mA average

Includes 11 Pin JST-GH Cable

Documentation

3D Model

Datasheet
